Linking the Schematic to the Drawing’s Sheet Number

Wouldn’t it be nice if changing the order of the sheets in the project didn’t screw up the ladders, components, and wire numbers? If your drawings follow a numbering scheme that is directly tied to the sheet number, it is time to update a few property settings.

What things are tied to sheet number in this type of numbering scheme? Well there’s the ladder rung numbers for one. Then we have the components tag finally the wire numbers.

Lets start out creating a new project. I’ll go over modifying an existing project at the end of this post.

The Ladder

imageBefore the ladder is placed, the style needs to be selected from the drawing’s properties.

From the Drawing Format tab, select Setup. This new dialog allows us to set ‘Sheet and numbers’. After choosing this setting, place the ladder, or ladders, on the sheet. Remember that the sheets number will be in front of each rung. So the starting rung number will be 00 or 01.

If no sheet number has been placed on the current sheet, the rung numbers will start with question makes. Add a sheet number to the drawing and watch the ladder update. Pretty sweet right? Wait until the components and wire numbers updates as well.

image  image
We can’t stop here. Because the rungs are actually named 00, 01, ect. So components and wire numbers will be missing the sheet numbers and that would lead to duplicates.

Note: If the drawing had a sheet number and it is blanked out, the rung numbers are given two zeros in place of the question marks.

The Components

To update this numbering style on the components, it’s back to the Drawing Properties. This time we are adding a %S between the %F (family) and %N (reference number). So the number is %F%S%N or Family, Sheet, Reference Number. All with no spaces or extra characters. Make sure these letters not in lowercase.
While we are here we can take care of the cross-reference style as well. Here we do not need the family but do need to add the sheet number (%S).

If the sheet number is blank, the component will have question marks in place of sheet numbers just like the ladder did. However unlike the ladder, the component tags do not automatically update after a sheet number change. To update the components tag, simply run the ‘Retag Components’ command.

image imageimageimage

If there are existing cross-references that should be updated as well, be sure to run the Component Cross-Reference command to update these cross-references to match the new style.

The Wire Numbers

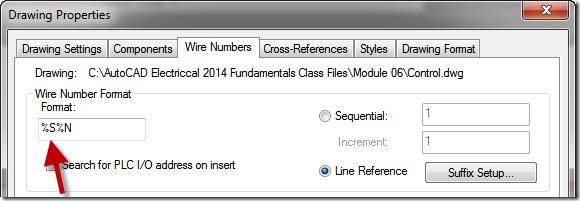

And finally we have the Wire numbers. By now you should know where we are headed. Back to the Drawing Properties again. This time the Wire Numbers tab. Simply add the %S to the front of the Wire Number Format cell and we’re done.


Wire numbers are easy. If they are already placed, simply rerun the Wire Numbers imagecommand again and they update. Either way, run the Wire Numbers command.


With these settings the drawings can be placed in any order at any time. Simply update the sheet numbers manually, using the Title Block Update, or the Project Wide Update/Retag commands. Then rerun the ‘Retag Component’, ‘Component Cross-Reference’ and ‘Wire Number’ commands Project Wide to refresh the sheets to match the new numbers.


Updating an Existing Project to Reference Sheet Number

The component tags and wire numbers are easy. Simply follow the instructions above and then run the ‘Retag Component’, ‘Component Cross-imageReference’ and ‘Wire Number’ commands Project Wide to refresh existing components.

All of these can be run at the same time using the Project Wide Update/Retag command. But that’s a blog post for another day.



The big problem with changing an existing project to this new numbering style is the ladders. The %S%N is actually a different MLR (Master Ladder Reference) block that the ladders use. So changing the ladder style in the drawing properties will not update the existing ladders. I wrote a post on swapping MLR blocks here… Changing a Ladder Reference Style Project Wide

AutoCAD Electrical IdeaStation Is Here!

http://forums.autodesk.com/t5/ideas/v2/ideaexchangepage/blog-id/37/tab/most-recent

Ever wished for a much needed feature inside of AutoCAD Electrical? Or maybe you have an idea for some added functionality to an existing feature… Now you have a direct link to the team working on future releases. Use the link above to access the Electrical IdeaStation and start posting your requests. Or review the existing requests, add your feedback, or simply give some ‘Kudos’ to add some weight to a topic.

Sunday, July 13, 2014

Hiding Location (LOC) and Installation (INST) Codes Project Wide

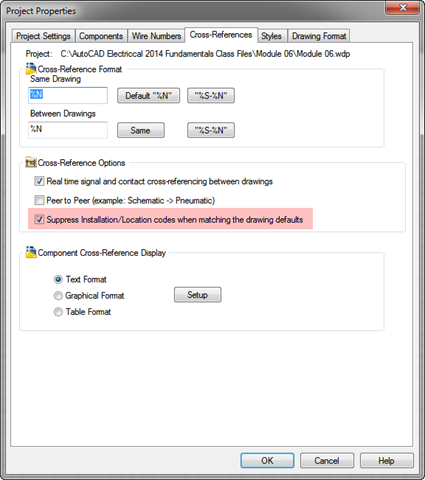

There is a check box in the Project Properties that will hide any LOC or INST code that matches the Drawing Properties codes. When first checking this you will be informed of the following alert…

If the Drawing Properties codes ever change, a Component Cross-Reference is all that is needed to update the LOC/INST visibility again.

But I want them ALL hidden!

So the build in tool only turns off the visibility if the values match the drawings same code. What if all location and installation codes need to be hidden? Well the easiest way would be to simply turn off their layer. It’s LOC by default. The layer names are set on the last tab of the drawing and project properties. imageimage

Checking the Freeze check box here will freeze the layer on the drawing. For some reason these boxes are not available on the Project Properties side.

This is really no different then using the standard AutoCAD Layers tools. It simply freezes the layer.

However this doesn’t help someone with a 60 page project who was just told to hide all location codes project wide. This would require manually opening 60 pages and then involve several additional clicks on each page.

This is still an easy fix but requires making a simple script file. Open Notepad and create the following. Note the two extra enter presses. The first is to get out of the layer selection part of the command. The second is to end the command.
I would normally post a link to an uploaded copy of any script… but I think you can handle this one.

Now to run the script project wide. Make sure the project is the active project and then load the Project-Wide Utilities from the Project tab.
